Technical Specifications
0 dBu is referenced to 0.775 volts RMS
Matrix Capabilities
Maximum Expansion Cards: 2
Maximum CPU Cards: 1 (included)
Maximum Power Supply Units: 2 (included)
Maximum Fiber Expansion Cards: 1
Ports per MVX Port Card: 16
Maximum MVX Port Cards: Maximum of 2
Maximum E-QUE, IVC-32, LMC-64 Port Cards: 1 E-QUE/IVC/LMC
Maximum E-IPA 16, 32 or 64 Port Card: 1
Maximum EMADI-64 Port Cards: 1 MADI
Maximum RJ45 Ports per Matrix: 64
Maximum Timeslots: 512
Matrix Performance
Sample Rate: 48 kHz
Resolution: 24 bit
Frequency Response: at 48 kHz sampling: 30 Hz – 22 kHz ± 3 dBu
Crosstalk (adjacent channel): <-70 dBu
Nominal Level: 0 dBu
Matrix headroom: +18 dBu
Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz
Off Noise: <-70 dBu (20 Hz – 22 kHz)
On Noise: <-65 dBu (20 Hz – 22 kHz)
Key Response, Intra-System: <40 ms for audio route
Linked Systems: <60 ms for audio between matrices
Environmental
Operating Temperature: 32°F – 104°F (0°C – 40°C)
Storage Temperature: -67°F – 158°F (-55°C – 70°C)
Humidity: 90%, non-condensing

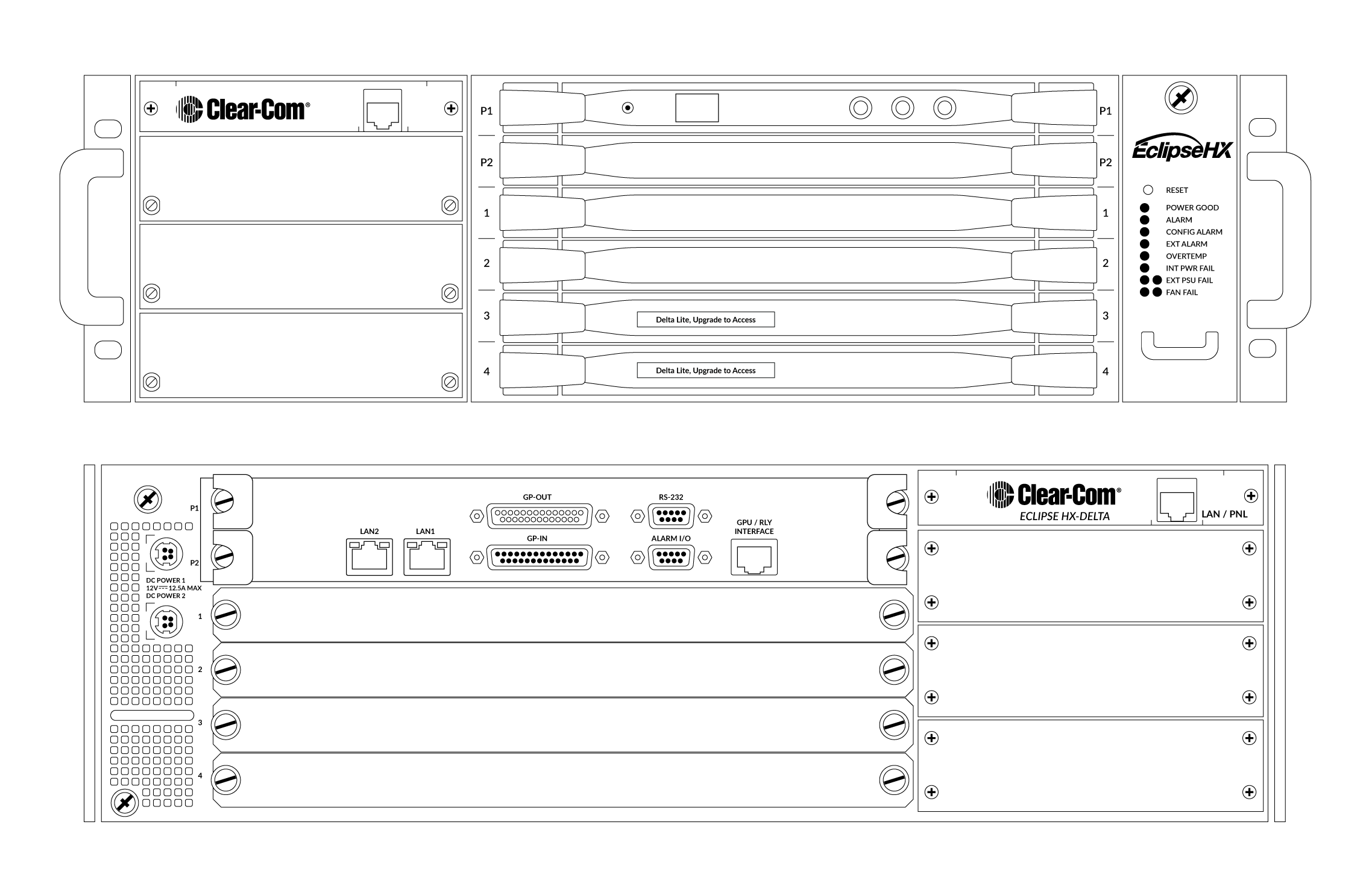

Dimensions
19 x 5.25 x 17.5 in.(WxHxD)
(482 x 133 x 445 mm)
Weight
Empty: 18 lbs (8.2 kg)
- ECLIPSEHX-DELTALITE16P
- ECLIPSEHX-DELTALITE32P
- ECLIPSEHX-DELTALITEUG
Features and/or Benefits
Expandable Connectivity
Two interface card slots and three module slots enable the matrix system to become the ultimate central hub for linking audio channels with a variety of connectivity options – such as IP, Dante, wireless, MADI, analog, fiber, telephony, radios, camera intercoms, and other forms of external communication.
Future-Proof
You may not need the full capacity of an Eclipse HX-Delta now, but you might in the future. Easily expand your system when you need it with a license upgrade that opens all of the card slots giving you the full capacity of an Eclipse HX-Delta frame.
