VLZ PROFILE

Categories: Ánh sáng kỹ xảo, Profile, Thiết bị ánh sáng.

Tag: Vari-Lite.

Features:

24,000 lumen output.
High quality image projection via 140mm (5.5in) front lens.
16-bit dimmer control with 4 selectable curves.
Full color mixing and color effects CYM + CTO 1 color wheel, 6 fixed colors, shake and wheel spin functions.
Texture effects animation wheel with continuous indexable / rotation.
Multiple fan level controls:

-Standard

-Studio

-Studio 2

-Whisper

Wide zoom range 8-50° zoom.
Camera friendly – separate frequency and gamma control of LED array.
Beam edge softening – 3-way frost control.
Beam shaping control, iris and framing shutter system 4 blade with independent control and frame rotation ±50° either side of center.
Projection and mid-air effects:

– Gobo wheel 1: 7 interchangeable fully rotating and indexing

gobos

– Gobo wheel 2: 7 interchangeable fixed gobos.

Multi beam effects 3 facet prism.

So sánh sản phẩm

Chia sẻ nội dung

Description
Reviews (0)
Thông số kỹ thuật

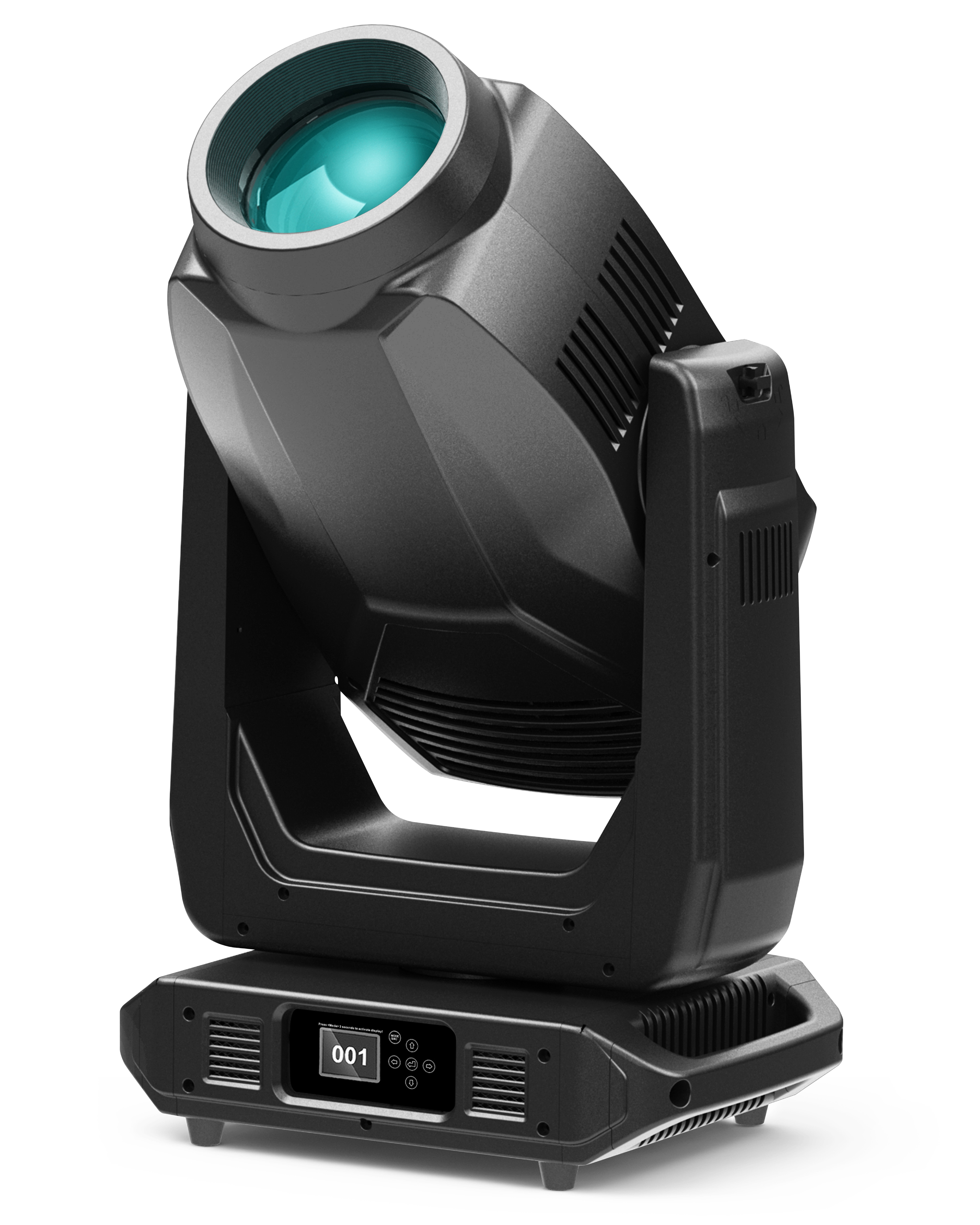

The Vari-Lite VLZ PROFILE is a dedicated profile luminaire utilizing the latest high output white LED sources to produce a staggering 24,000 lumens projected from a 140mm front lens.

The enhanced fan control system allows users to choose one of four fan levels to match the output they require for a show remotely from a console. The familiar CMY-CTO color system creates stunning, seamless mixed colors. The dual fixed color wheel with linear control gives access to Vari-Lite colors and split color combinations. Color shake and color wheel spin control have also been added to the mix.

Reviews

There are no reviews yet.

Be the first to review “VLZ PROFILE” Cancel reply

DATA SHEET

VLZ PROFILE DATA SHEET

DMX MAP

DRAWINGS

VLZ Profile DWG Drawing.dwg

VLZ Profile VWX Drawing.vwx

FIXTURE LIBRARY

VariLite VLZ Profile 16 bit enhanced GrandMA Fixture Library.xml

VariLite VLZ Profile 16 Bit Enhanced Neo Fixture Library.lff

VariLite VLZ Profile 16 bit GrandMA2 Fixture Library.xml

VariLite VLZ Profile Neo Fixture Library.xml

GOBOS

VariLite VLZ Profile Gobos.zip

GUIDES & MANUALS

VariLIte_VLZ_Profile_QuickStartGuide.pdf

VariLite_VLZ_Profile_UserManual.pdf

IMAGES


PHOTOMETRIC & IES FILES

VariLite_VLZ_Profile_Photomectrics.pdf

SOFTWARE & FIRMWARE

VLZ_Software_122118.zip

Pegasus Software.zip

VLZP_081518.bin

VLZP_061217.bin

VLZP_090817.bin

VLZP_110817.bin

TECHNICAL NOTICES & BULLETINS
